Produktbeskrivning:

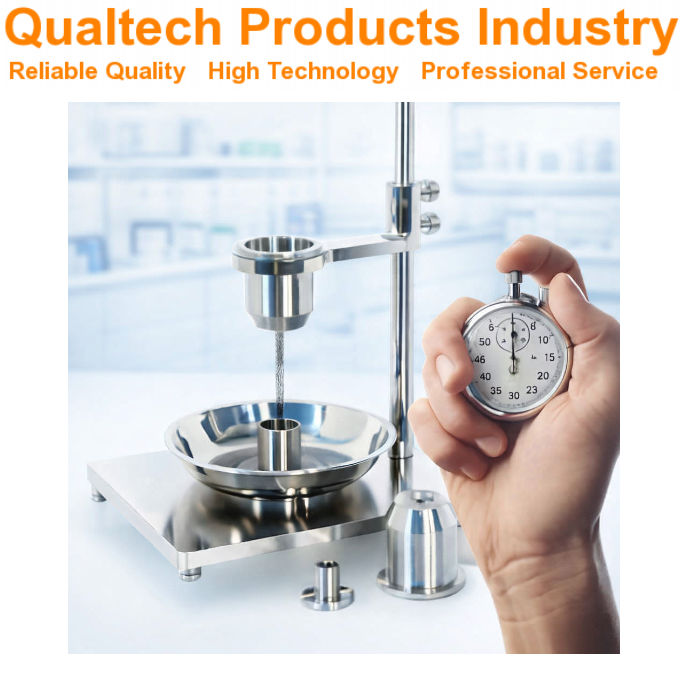

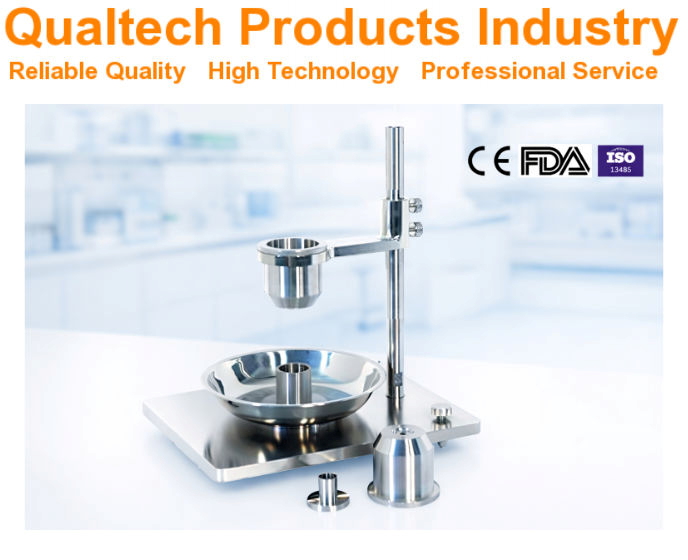

Qualtech Products Industry Carney flödesmätare with a Carney Funnel and a Hall Funnel is a precision density measurement instrument to determine the Carney Flow Rate, the Flow Qualities, the Bulk Density and the Apparent Density of loose sample products and loose sample materials, e.g. powders.
Detta proffs Carney Flow Meter is designed and engineered offering a solid and ergonomic stand combined with a precision engineered Hall Flowmeter Funnel with an orifice diameter of 0.1″ (2.5 mm), a precision engineered Carney Funnel with an orifice diameter of 0.2″ (5 mm), a Density Cup, a digital Stopwatch, a Powder Tray, a Lid, a Brush, and much more.
An electronic high-precision scale and balance is optional available offering highest accuracy and precision to measure the Apparent Density of powders.
To ensure highest precision each Funnel is made of one larger piece of Stainless Steel or of Brass.
De Carney Funnel och den Hall Funnel are available in either Stainless Steel or Brass to best meet your requirements.
De Carney Flowmeter Method is performed in accordance with ASTM B417 and suggests to measure the time 50g of powder needs to pass through an orifice with a specified diameter.
Detta proffs Carney Flow Meter is the ideal Apparent Density Measurement Instrument for research and quality management to efficiently evaluate the flow qualities and the apparent density of loose samples including metal powders.
Denna precision Carney flödesmätare is suitable to test a wide range of loose samples including food powder products, metal powders, plastic powders, ceramic powders, pharmaceutical powders, chemical powders, cement powders and many related materials.
This professional Carney Flowmeter Kit is designed and engineered in accordance with international test standards including:
- ASTM B212 (Standard Test Method for Apparent Density of Free-Flowing Metal Powders Using the Hall Flowmeter Funnel)
- ASTM B213 (Standard Test Methods for Flow Rate of Metal Powders Using the Hall Flowmeter Funnel)
- ASTM B417 (Standard Test Method for Apparent Density of Non-Free-Flowing Metal Powders Using the Carney Funnel)
- ISO 3923 (Metallic powders — Determination of apparent density)
- ISO 4490 (Metallic powders — Determination of flow rate by means of a calibrated funnel (Hall Flowmeter))
- ISO 14629 (Fine ceramics (advanced ceramics, advanced technical ceramics) — Determination of flowability of ceramic powders)
- MPIF No.3
- MPIF No.4
- MPIF No.28
Carney flödesmätare - Applications:
- Carney Flowmeter Test: The powder flows succesfully through the Hall Flowmeter Funnel
- Apparent Density Measurement: The powder flows succesfully through the Hall Flowmeter Funnel
- Apparent Density Measurement: The powder doesn’t flow through the Hall Flowmeter Funnel, but flows succesfully through the Carney Flowmeter Funnel
- Apparent Density Measurement: The powder doesn’t flow through the Hall Flowmeter Funnel nor through the Carney Flowmeter Funnel, a Scott Volumeter is required to complete further tests.
Carney flödesmätare - Funktioner:
- Precision engineered Carney Flowmeter Kit
- Carney Funnel with an orifice diameter of 0.2″ (5 mm) ideal to measure the Apparent Density
- Hall Flowmeter Funnel with an orifice diameter of 0.1″ (2.5 mm)
- Density Cup with 25cc
- Available Non-Magnetic made of Brass (please specify when ordering)
- Electronic Precision Balance (optional accessory)
- Digital Stopwatch
- Solid & Ergonomic Stand
- Precisionskonstruerad
- Each Funnel is made of one larger piece of Stainless Steel or of Brass to ensure highest precision
- Hög noggrannhet och hög repeterbarhet
- Multifunctional Application in accordance with international test standards
- Användarvänlig applikation
- Användarvänlig provhantering
- Ergonomisk design och pålitlig prestanda
- Engineered in accordance with international test standards including ASTM B212, ASTM B213, ASTM B417, ISO 3923, ISO 4490, ISO 14629, MPIF No.3, MPIF No.4, MPIF No.28
Carney flödesmätare – Specifikationer:
| Modell | QPI-CFM1800SS | QPI-CFM1800B |
|---|---|---|
| Professional Carney Flowmeter Kit | Ja | Ja |
| Trattmaterial | Rostfritt stål | Mässing |
| Carney Funnel | 0,2" (5 mm) (medföljer tillbehör) | 0,2" (5 mm) (medföljer tillbehör) |
| Hall Funnel | 0,1" (2,5 mm) (medföljer tillbehör) | 0,1" (2,5 mm) (medföljer tillbehör) |
| Balansmätområde | 0,00 - 100,00 g (valfritt tillbehör) | 0,00 - 100,00 g (valfritt tillbehör) |
| Balansnoggrannhet | 0.1g or 0.01g or 0,001g (krävs för fluffiga material, t.ex. Aerosil (pyrogen kiseldioxid) (Ange vid beställning) | 0.1g or 0.01g or 0,001g (krävs för fluffiga material, t.ex. Aerosil (pyrogen kiseldioxid) (Ange vid beställning) |
| Stoppur noggrannhet | ±0,1 sek (medföljer tillbehör) | ±0,1 sek (medföljer tillbehör) |
| Precisionskonstruerad | Ja | Ja |
| Hög noggrannhet och hög repeterbarhet | Ja | Ja |
| Ergonomisk design | Ja | Ja |
| Pålitlig prestanda och livslängd | Ja | Ja |
| Engineered in accordance with international test standards including ASTM B212, ASTM B213, ASTM B417, ISO 3923, ISO 4490, ISO 14629, MPIF No.3, MPIF No.4, MPIF No.28 | ||
Carney flödesmätare – Inkluderade föremål:
- Carney flödesmätare
- Precision Carney-tratt
- Precisionshallstratt
- Precision Density Cup
- Brett utbud av medföljande tillbehör
- Kvalitetscertifikat
- Noggrant kalibrerad
- Användarmanual
- Förlängd garanti
- Livstidssupport
