Descrição do produto:

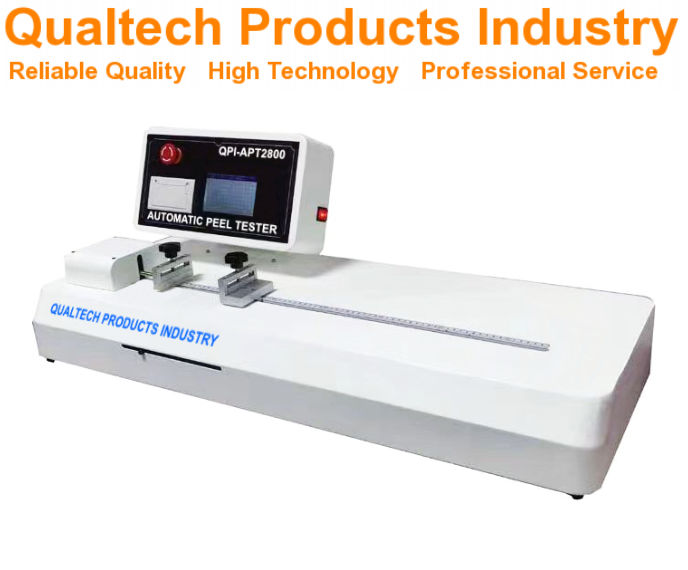

Indústria de Produtos Qualtech Automatic Peel Tester is an Adhesive Tape Peel Adhesion Tester to automatically measure the adhesive strength de Adhesive Tape and similar samples peeled at an angle of 180°. The high-precision Sensors are engineered for professional Peel Adhesion Testing e Strip force Testing ao toque de um botão.
The large Color Touchscreen Display offers an intuitive Menu Navigation and presents a comprehensive Test Graph.
O Peel Adhesion Test evaluates the adhesive strength of a sample attached to a substrate and the strength of an adhesive bond between two sample materials. The Peel Test applies a localized and targeted stress on a flexible adhesive, for example, adhesive tape, adhesives, glue or wire insulation at angle of 180°.
Este profissional Automatic Peel Adhesion Tester offers the newest microchip technology combined with a large Color Touchscreen Display presenting a comprehensive Test Curve, high-precision Peeling Force Sensors, fully automatic testing, automatic Minimum Peel Force and Maximum Peel Force and Average Peel Force calculations, Standard Deviation, Coefficient of Variation, automatic Test Data Saving, large integrated Memory, comprehensive Test Curve, automatic Test Report, personalized Test Reporting, Automatic Calibration, High Accuracy & High Precision, user-friendly application, intuitive Menu Navigation, user-friendly sample handling, a wide range of available Sample Holders, optional custom engineered Sample Holders available, integrated Mini Printer, ergonomic design, reliable performance and much more.
Esta precisão Testador de adesão de descamação offers a wide range of preset and personalized Test Programs including:
- Destructive Attenuation Test
- Specified Displacement Test
- Specified Force Test
- Specified Time Test
- Freely Programmable Test Program
This professional Automatic Peel Adhesion Tester is designed and engineered in accordance with international test standards.
Automatic Peel Adhesion Tester - Recursos:
- Mais recente tecnologia de microchip
- Ecrã táctil a cores grande
- Comprehensive Test Curve
- High-precision Peeling Force Sensors
- Fully Automatic Testing
- Automatic Minimum Peel Force Calculation
- Maximum Peel Force Calculation
- Average Peel Force Calculation
- Standard Deviation Calculation
- Coefficient of Variation Calculation
- Automatic Test Data Saving
- Large integrated Memory
- Comprehensive Test Curve
- Automatic Test Report
- Personalized Test Reporting
- Destructive Attenuation Test
- Specified Displacement Test
- Specified Force Test
- Specified Time Test
- Wide range of preset and freely programmable Test Programs
- Aplicativo amigável
- Navegação de menu intuitiva
- Manuseio de Amostra Fácil de Usar
- Wide range of available Sample Holders
- Optional custom engineered Sample Holders available
- Integrated Mini Printer
- Calibração Automática
- Alta precisão e alta precisão
- Design ergonômico e desempenho confiável
- Projetado de acordo com os padrões de teste internacionais
Automatic Adhesive Tape Peel Adhesion - Specifications:
| Modelo | QPI-APA1800 |
|---|---|
| Tecnologia mais recente | Sim |
| Ecrã táctil a cores grande | Sim |
| Max Peel Force | 50N |
| Peel Force Accuracy | ≤±0.5% |
| Peel Displacement Resolution | 0.001mm |
| Peel Force Resolution | 1/200,000 |
| Max Peel Distance | 350mm |
| Velocidade | 1.00 - 500.00 mm/min |
| Sample Width | 50mm |
| Optional Sample Holders available | Varying Sample Width |
| Unidades | kgf, N, Lbf, gf, mg, KN, T, oz, cwt, dr, gf/mm. kgf/cm, N/m, N/25mm, N/2mm, N/15mm, N/100mm |
| Destructive Attenuation Test | Sim |
| Specified Displacement Test | Sim |
| Specified Force Test | Sim |
| Specified Time Test | Sim |
| Wide range of preset and freely programmable Test Programs | Sim |
| Fully Automatic Testing | Sim |
| Automatic Minimum Peel Force Calculation | Sim |
| Maximum Peel Force Calculation | Sim |
| Average Peel Force Calculation | Sim |
| Standard Deviation Calculation | Sim |
| Coefficient of Variation Calculation | Sim |
| Automatic Test Data Saving | Sim |
| Aplicativo amigável | Sim |
| Navegação de menu intuitiva | Sim |
| Manuseio de Amostra Fácil de Usar | Sim |
| Calibração Automática | Sim |
| Alta precisão e alta precisão | Sim |
| Feito de materiais de alta qualidade | Sim |
| Design ergonômico e desempenho confiável | Sim |
| Projetado de acordo com os padrões de teste internacionais | |
Automatic Adhesive Tape Peel Adhesion Tester - Itens inclusos:
- Automatic Adhesive Tape Peel Adhesion with Color Touchscreen
- Acessórios
- Certificado de qualidade
- Calibrado cuidadosamente
- Certificado de calibração
- Manual do usuário
- Garantia extendida
- Suporte vitalício
Obtenha informações agora sobre produtos, preços, suporte técnico e serviços profissionais.
Um de nossos especialistas responderá à sua pergunta em breve. Em alternativa, contacte-nos através dos dados da empresa nos EUA, na Austrália ou no Reino Unido.
